C.T.I. 04-075-06 PISTON RING SET FOR 89-91 HONDA CIVIC CRX D15B6 1.5L 1.6L SOHC

$39.99 USD
$39.99 USD
Sale Sold out
Shipping calculated at checkout.
Bore Size
C.T.I. 04-075-06 PISTON RING SET FOR 89-91 HONDA CIVIC CRX D15B6 1.5L 1.6L SOHC



Condition: 100% New
Brand: C.T.I.
Surface: Chrome Plated
Engine Type: D15B6 D16Y5 D16Y7 D16Y8 1.5L 1.6L
Compatible Model: HONDA CIVIC CRX
ISO-9001/IATF-16949 Approved
Manufactured quality meet or exceed OEM specifications.

Oversize 020/030 is also available in our selecting menu.
Please refer to the images for an accurate description of the parts included in this listing.

REFERENCE NUMBERS:
- 2C4690, SWH30423, S75314, 10528KX, RSH21, E-514KC
PRODUCT SPECIFICATIONS:
4 CYL ENGINE SET

Note: Deep Oil Ring Groove

STD Piston Ring Size(mm)

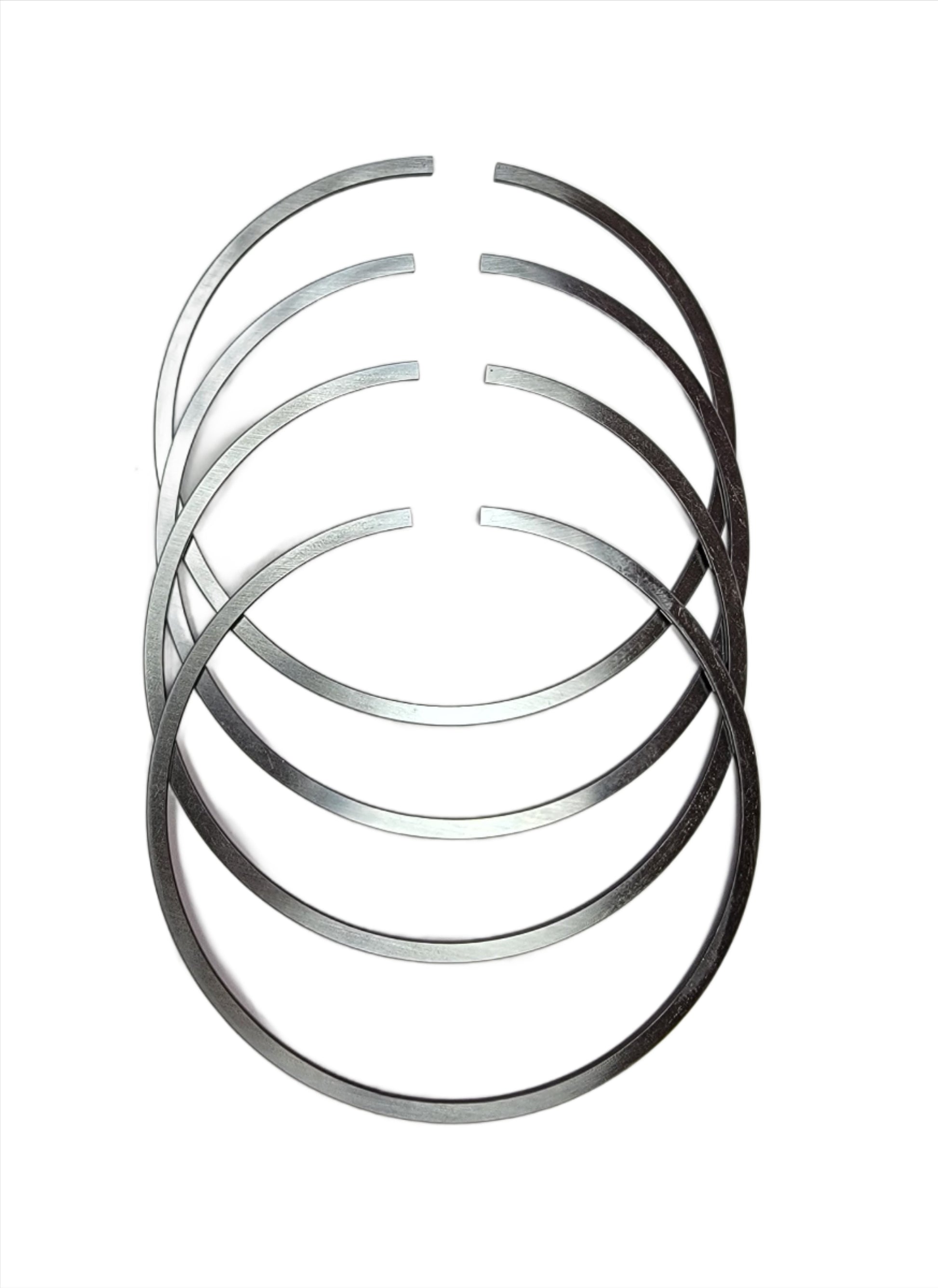

1st ring:  75*1.0*2.7mm

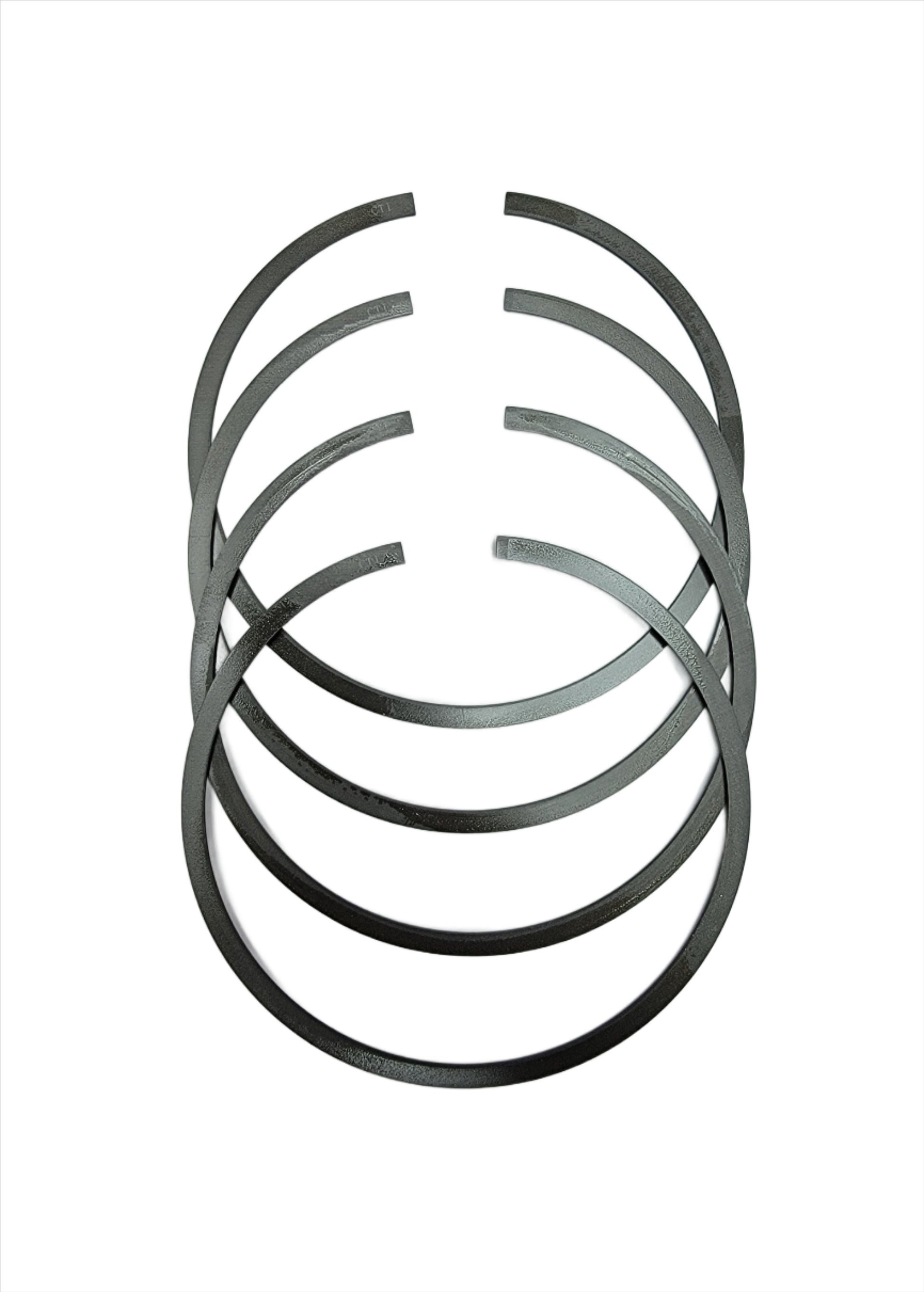

2nd ring: 75*1.2*2.8mm

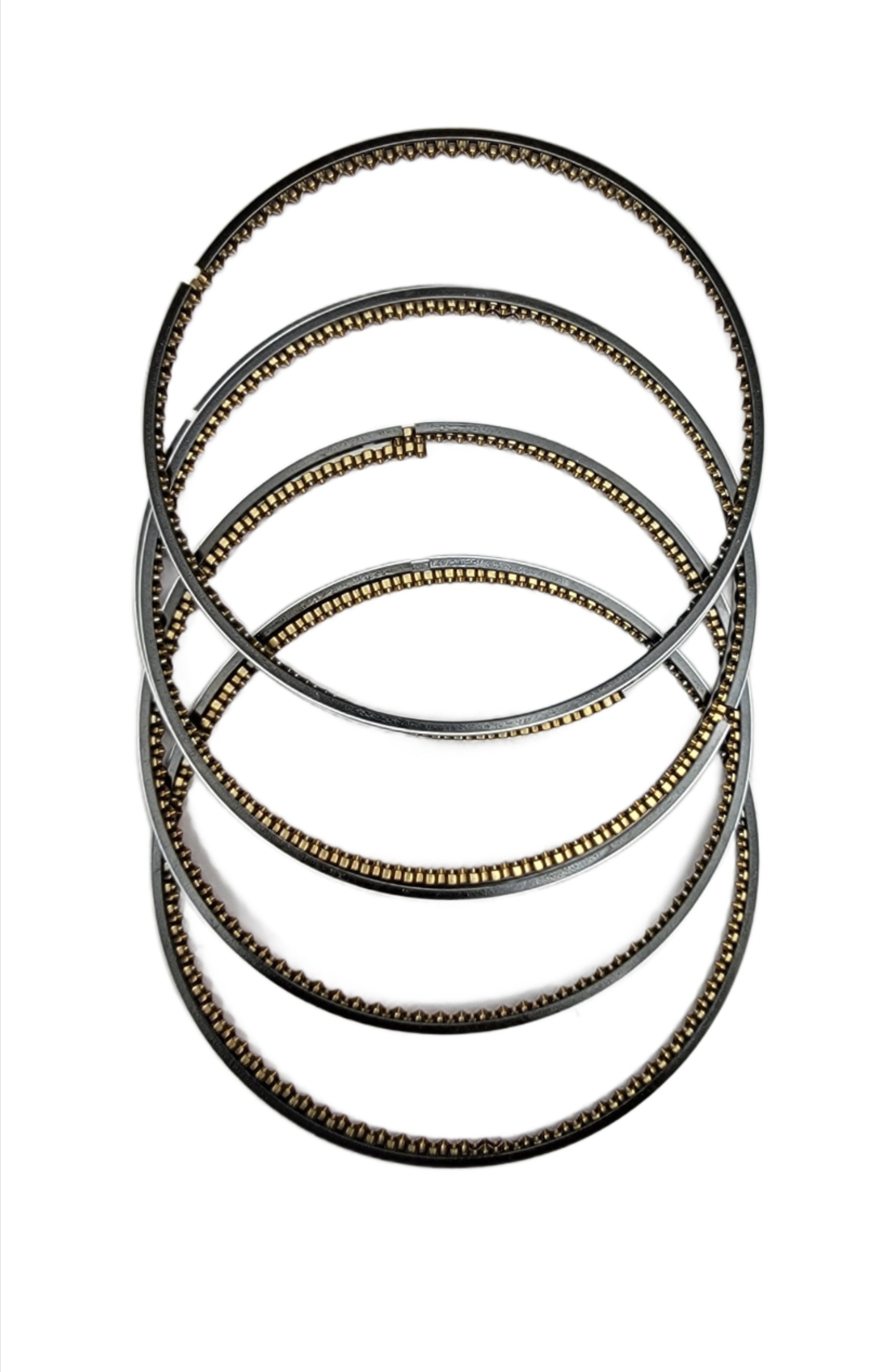

Oil Ring: 75*2.8*3.1mm

Oversize 020 Piston Ring Size(mm)
1st ring:  75.5*1.0*2.7mm
2nd ring: 75.5*1.2*2.8mm
Oil Ring: 75.5*2.8*3.1mm

Oversize 030 Piston Ring Size(mm)
1st ring:  75.75*1.0*2.7mm
2nd ring: 75.75*1.2*2.8mm
Oil Ring: 75.75*2.8*3.1mm

Package Contents:

1 C.T.I. 04-075-06 Piston Ring Set
