C.T.I 04-086-02N NITRIDED PISTON RING SET FOR 02-11 TOYOTA RAV4 HONDA CIVIC ACURA RSX 2.0L DOHC

$73.00 USD
$73.00 USD
Sale Sold out
Shipping calculated at checkout.
Bore Size
C.T.I. 04-086-02N NITRIDED PISTON RING SET FOR 02-11 TOYOTA RAV4
HONDA CIVIC ACURA RSX 2.0L DOHC



Condition: 100% New
Brand: C.T.I.
Surface: Nitrided
Engine Type: K20A1 K20A2 K20Z1 K20A3 K20Z3 1AZ-FE 3S-FE 2.0L DOHC Cu. 122
Compatible Model: Honda Civic, Acura RSX, Toyota RAV4
ISO-9001/IATF-16949 Approved
Manufactured quality meet or exceed OEM specifications.

Please refer to the images for an accurate description of the parts included in this listing.

REFERENCE NUMBERS:
- 13011-PNE-G02, 13011-PRA-E02, 2C5089, 41918CP, 4216939653, CPW7718, SWH30454

PRODUCT SPECIFICATIONS:

STD Piston Ring Size(mm)

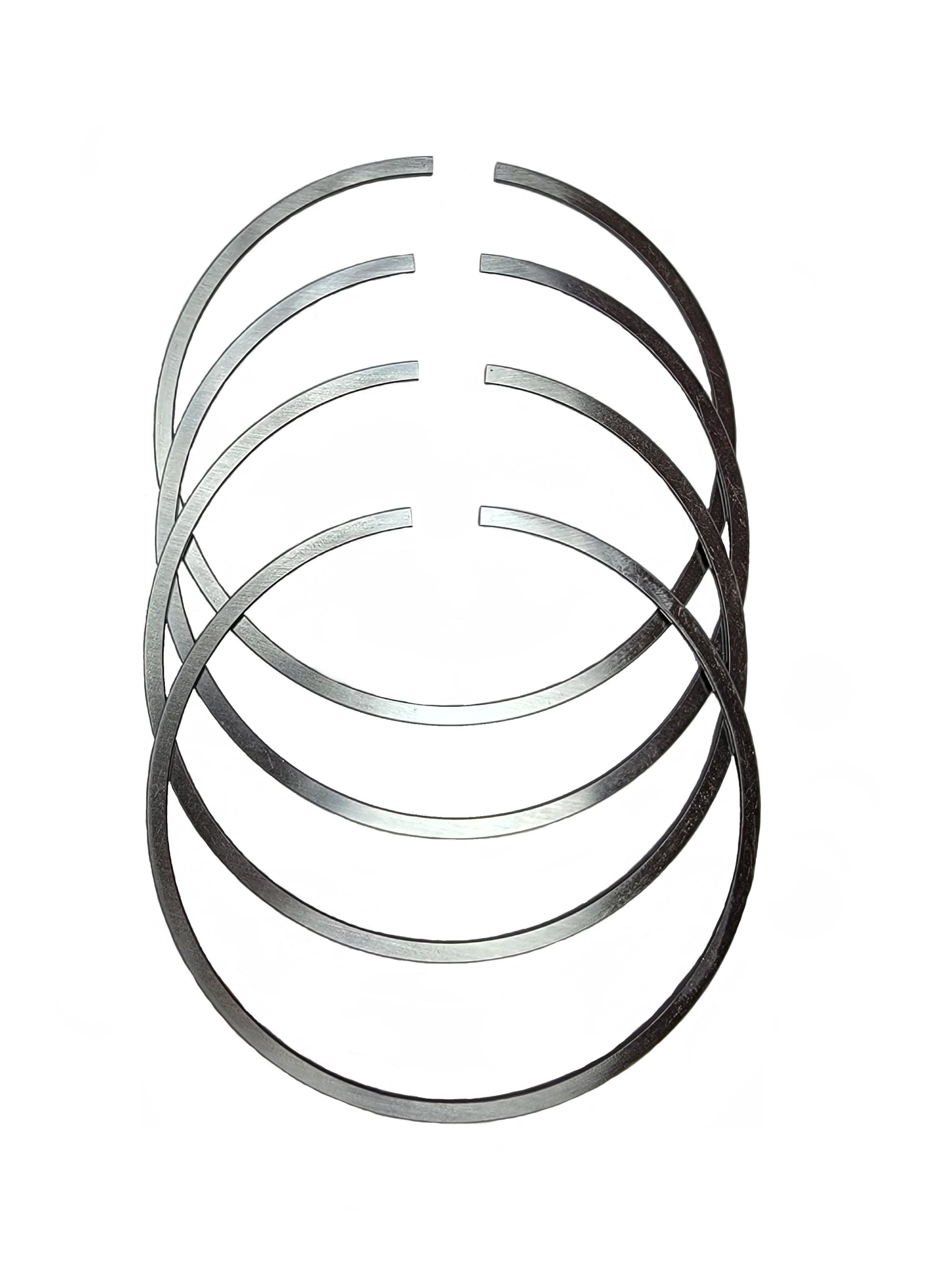

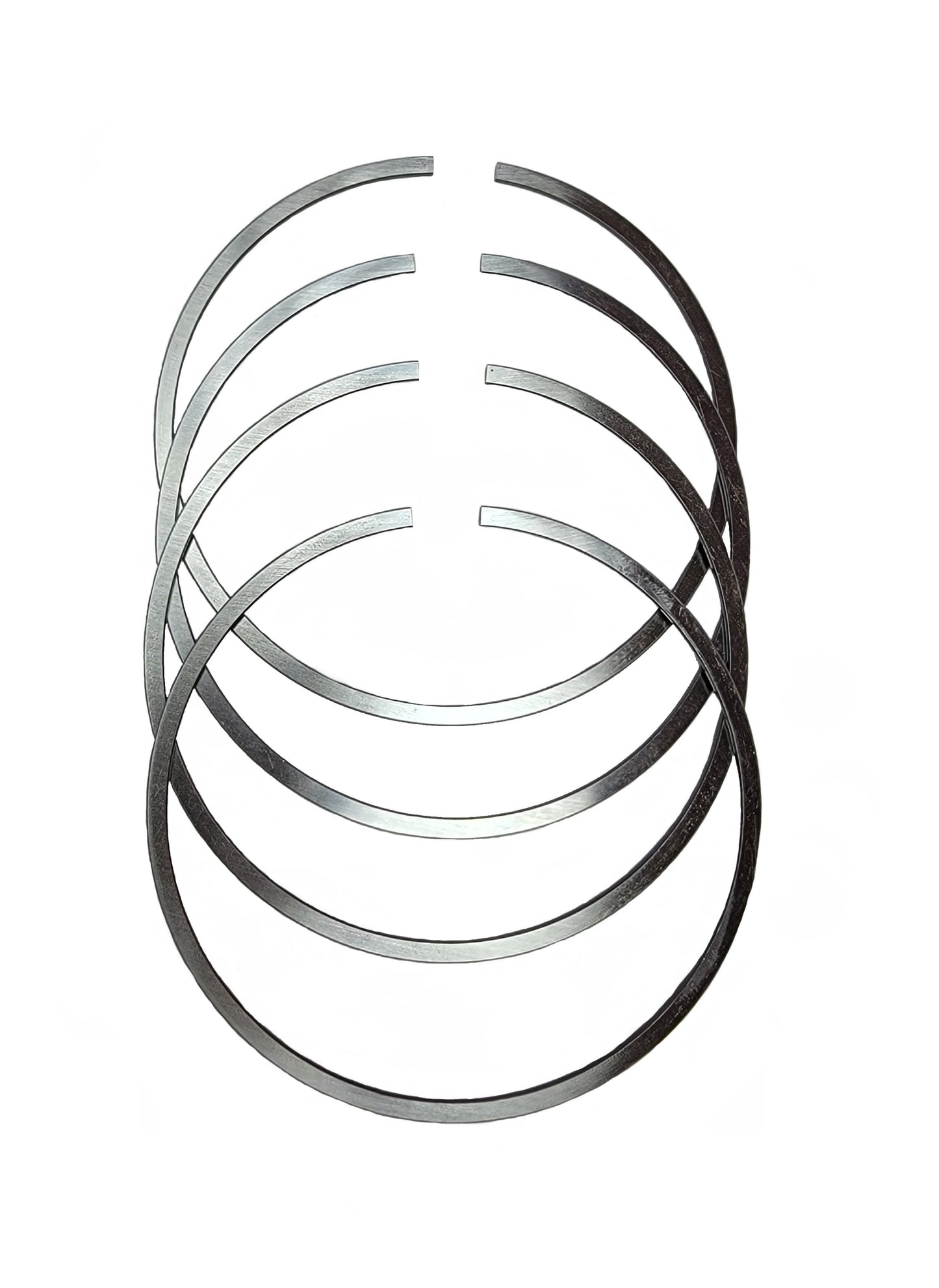

1st ring:  86*1.2*3.1mm

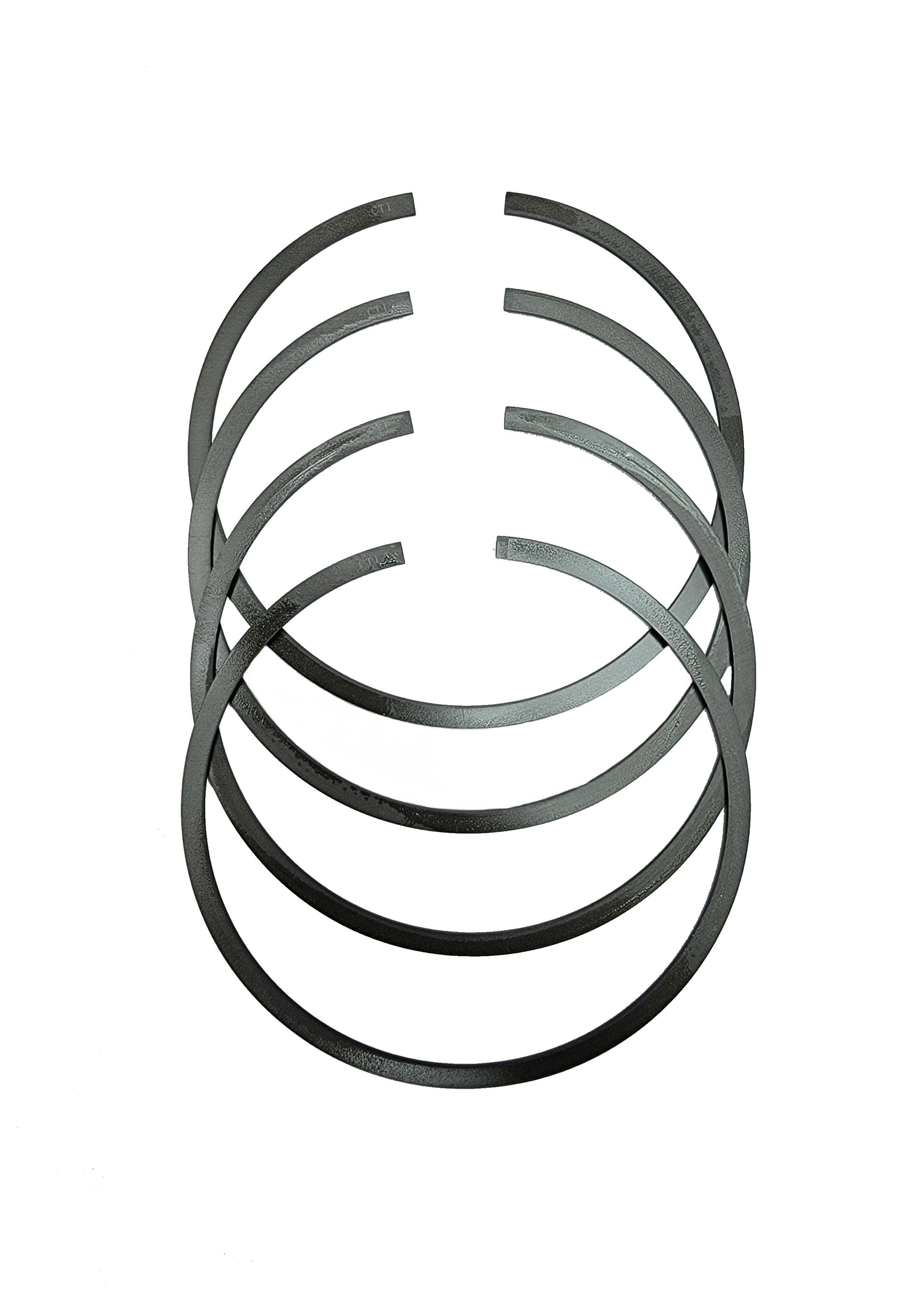

2nd ring: 86*1.2*3.4mm

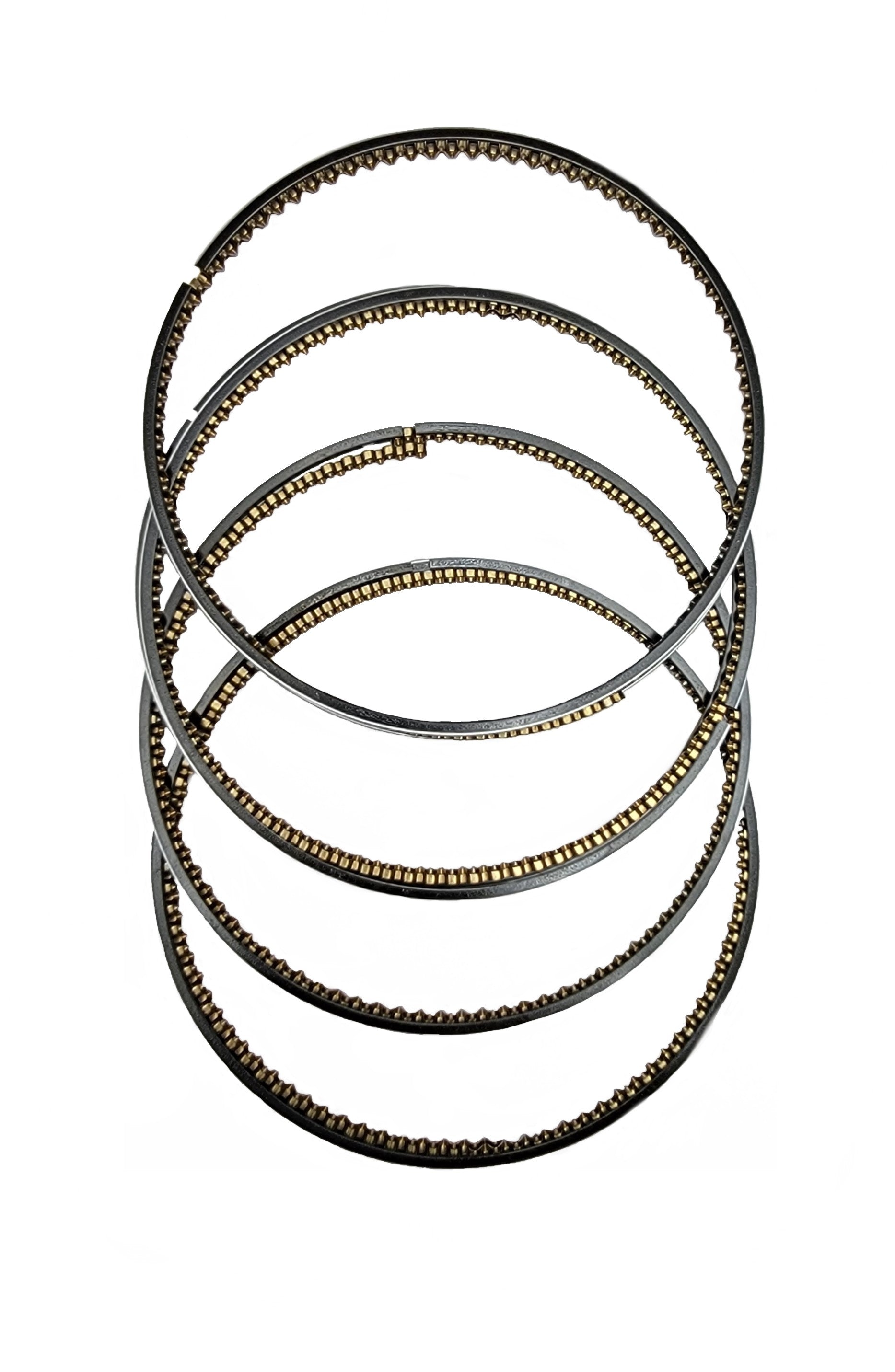

Oil Ring: 86*2.0*2.5mm

Oversize 020 Piston Ring Size(mm)
1st ring:  86.5*1.2*3.1mm
2nd ring: 86.5*1.2*3.4mm
Oil Ring: 86.5*2.0*2.5mm

Oversize 040 Piston Ring Size(mm)
1st ring:  87*1.2*3.1mm
2nd ring: 87*1.2*3.4mm
Oil Ring: 87*2.0*2.5mm

APPLICATION:

Make

Model

Year

Engine

Acura

RSX

2002-2006



2.0L 1998CC 122CID

4Cyl 86.0mm



K20A3, K20Z1, K20Z3

Honda

Civic

2002-2011

2.0L 1998CC 122CID

4Cyl 86.0mm



K20A3, K20Z3

Toyota

RAV4

2000-2004

2.0L 1998CC 122CID

4Cyl 86.0mm



1AZ-FE,3S-FE

Package Contents

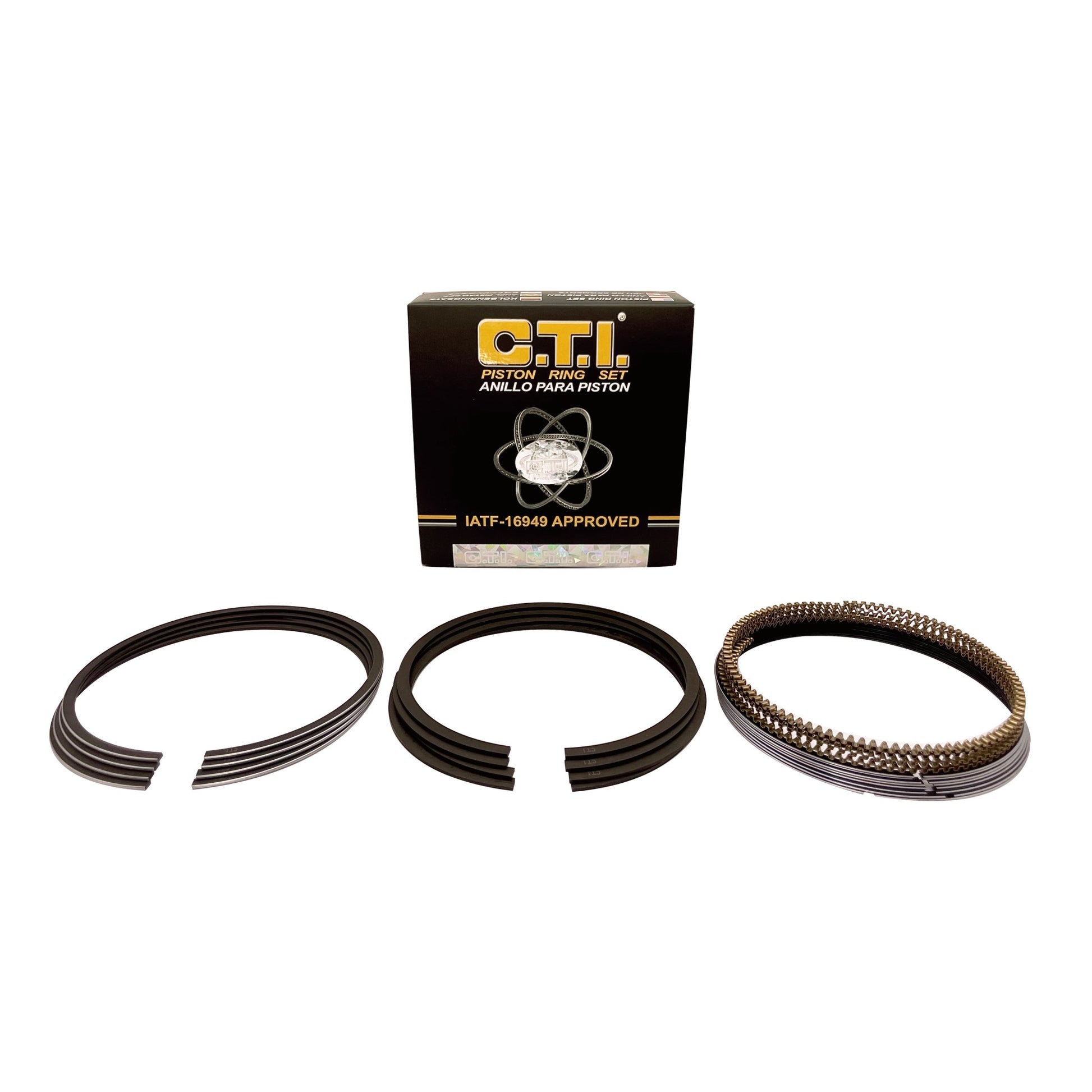

1 C.T.I. 04-086-02N Piston Ring Set

Shipping

 Ships the same business day by USPS or other available shipping method after payment clears.

Warranty & Return Policy

  • Our certified parts come with a 1 year warranty.
  • The warranty is only valid for non-artificial defects. Human abuse, improper usage, alteration to the product, or negligence will NOT be covered.
  • Returned items are subject to approval by us, it should be brand new, and has not been installed or damaged and inside the original box.
  • All exchanges or refunds must be received within 30 business days. Buyers bear the shipping cost for returning defective or non-defective item to us.
  • Physically damaged items received should be reported within 48 hrs.
  • We will NOT charge the restocking fee with a replacement order, otherwise we will have to charge you 35% restocking fee or the shipping cost paid over.
  • Please assure you are ordering the correct parts you need. It is the ultimate responsibility of you (the buyer/consumer) to confirm in advance that such part(s) will fit your vehicle.
  • If unsure about the compatibility do not hesitate to send us a message.
  • Parts that have been installed, painted, plated, etc. will not be acknowledged for return.
