C.T.I. 06-084-03 PISTON RING SET FOR 76-81 CHEVROLET ISUZU LUV 1.8L SOHC

$38.99 USD
$38.99 USD
Sale Sold out
Shipping calculated at checkout.
Bore Size

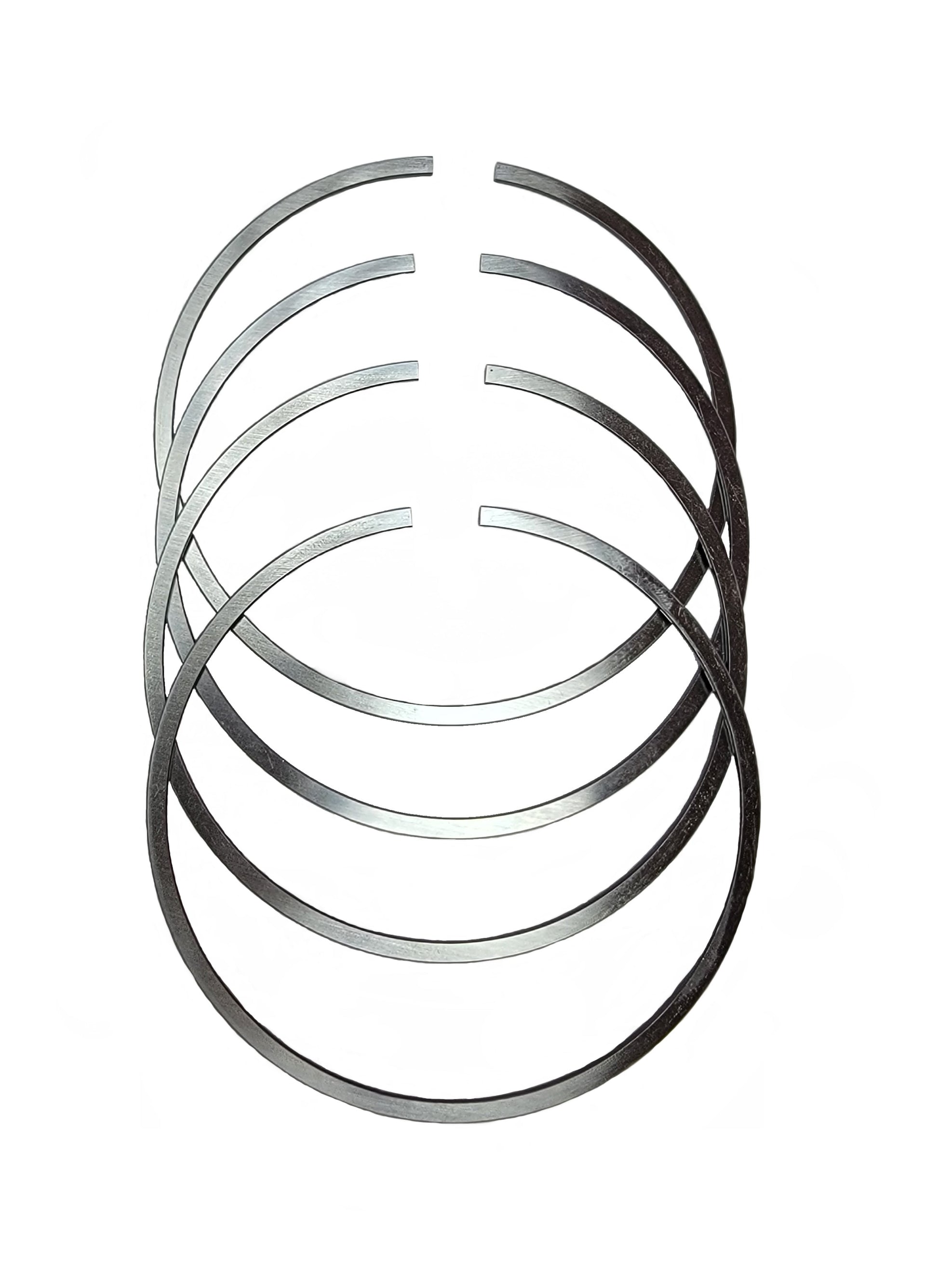

C.T.I. 06-084-03 PISTON RING SET FOR 76-81 CHEVROLET ISUZU LUV 1.8L SOHC



Condition: 100% New
Brand: C.T.I.
Surface: Chrome Plated
Engine Type: G180Z SOHC 1.8L
Compatible Model: CHEVROLET ISUZU
ISO-9001/IATF-16949 Approved
Manufactured quality meet or exceed OEM specifications.

Oversize 020/030/040 is also available in our selecting menu.
Please refer to the images for an accurate description of the parts included in this listing.

REFERENCE NUMBERS:
- 2C4247, 013-3173, E-357X, 021-1460
PRODUCT SPECIFICATIONS:
4 CYL ENGINE SET

STD Piston Ring Size(mm)
1st ring:  84*2.0*3.8mm
2nd ring: 84*2.0*3.8mm
Oil Ring: 84*4.0*3.8mm

Oversize 020 Piston Ring Size(mm)
1st ring:  84.5*2.0*3.8mm
2nd ring: 84.5*2.0*3.8mm
Oil Ring: 84.5*4.0*3.8mm

Oversize 030 Piston Ring Size(mm)
1st ring:  84.75*2.0*3.8mm
2nd ring: 84.75*2.0*3.8mm
Oil Ring: 84.75*4.0*3.8mm

Oversize 040 Piston Ring Size(mm)
1st ring:    85*2*3.8mm
2nd ring:   85*2*3.8mm
Oil Ring:  85*4*3.8mm

Package Contents:

1 C.T.I. 06-084-03 Piston Ring Set
